991 SERIES EXTREME HEAT SLEEVE

HYPERFLOW Extreme Heat Sleeve – 991 Series

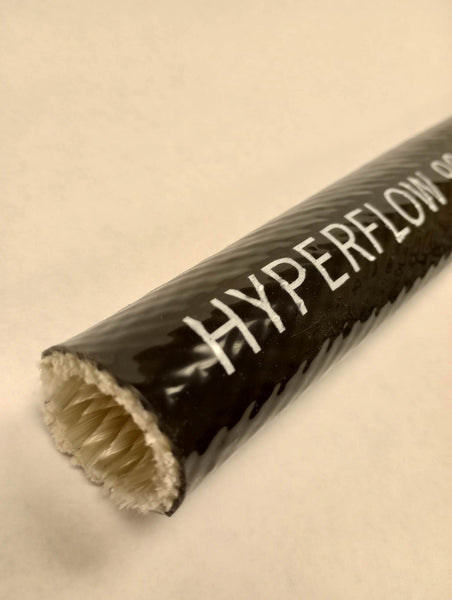

Hyperflow Extreme Heat Sleeve is a high quality smooth silicone coated glass sleeve which has been engineered to withstand exhaust, engine & transmission heat of continuous temperatures of up to 650 deg F. Hyperflow Heat Sleeve is designed to be fitted before final assembly of fittings. The Heat Sleeve can be used on braided hoses, hard lines, brake lines, electrical wiring and just about anything you can think of.

Reference for sleeve Part Number to I.D. Size

             PART #              I.D. SIZE

• 991-06-03 =  (6mm-1/4" ID)       - Suits 3/16 Brake Hard line
• 991-08-03 =  (8mm-5/16" ID)     - Suits 3AN PTFE Braided Hose
• 991-13-03 =  (13mm-1/2" ID)     - Suits 4AN Braided Hose
• 991-15-03 =  (15mm-5/8" ID)     - Suits 6AN Braided Hose
• 991-20-03 =  (20mm-3/4" ID)     - Suits 8AN Braided Hose
• 991-22-03 =  (22mm-7/8" ID)     - Suits 10AN Braided Hose
• 991-25-03 =  (25mm-1" ID)        - Suits 12AN  Braided Hose
• 991-30-03 =  (30mm-1-1/8" ID)
• 991-32-03 =  (32mm-1-1/4" ID) - Suits 16AN Braided Hose
• 991-35-03 =  (35mm-1-3/8" ID)
• 991-40-03 =  (40mm-1-5/8" ID) - Suits 20AN Braided Hose
• 991-45-03 =  (45mm-1-3/4" ID)
• 991-50-03 =  (50mm-2" ID)

Sold in 3ft length & can be ordered in continuous qty lengths of 3 ft.

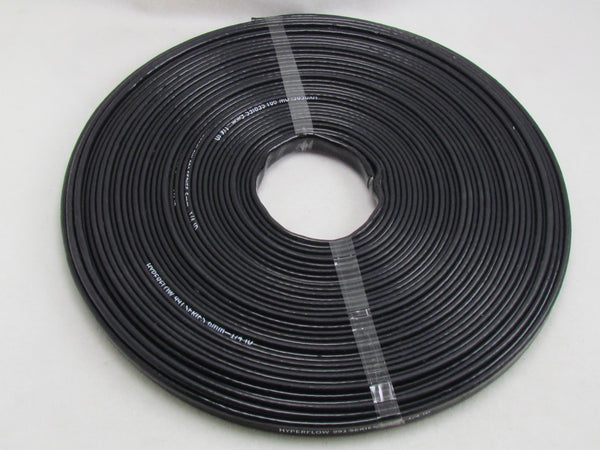

Popular sizes are available in pre-cut lengths of 20 ft & 66 ft rolls.
